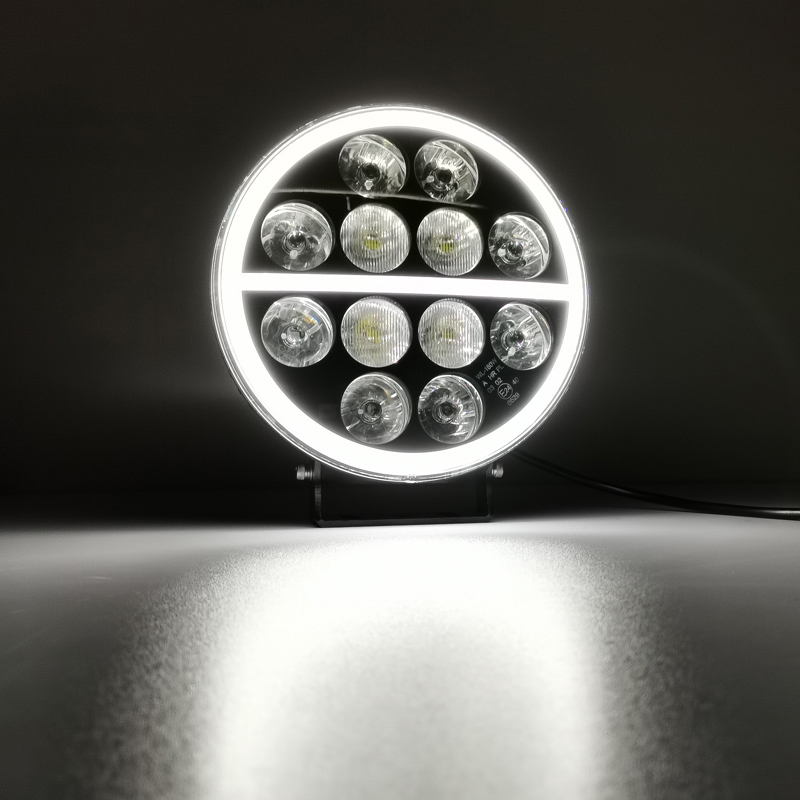

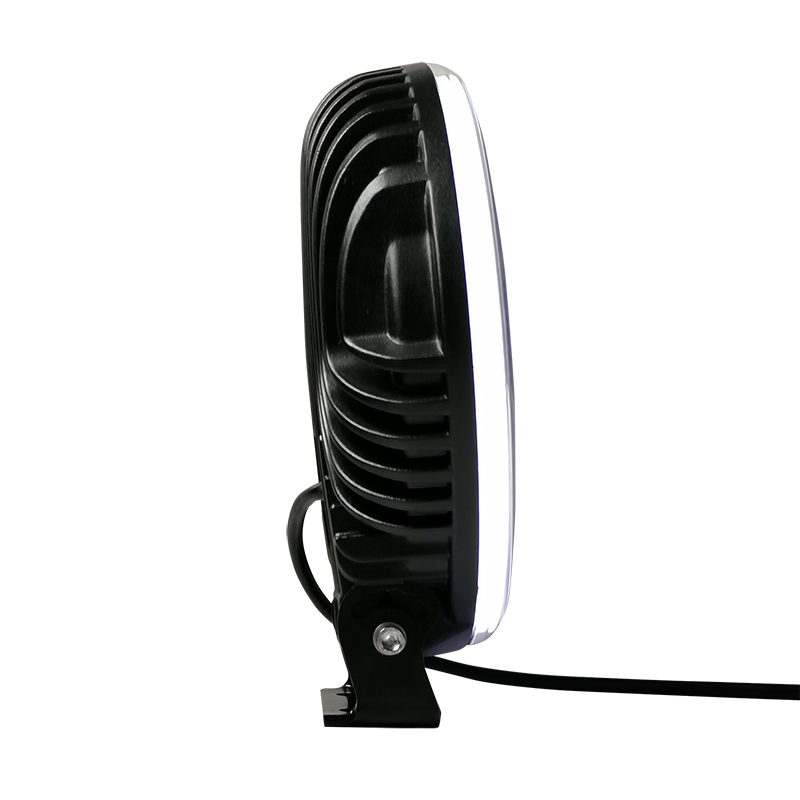

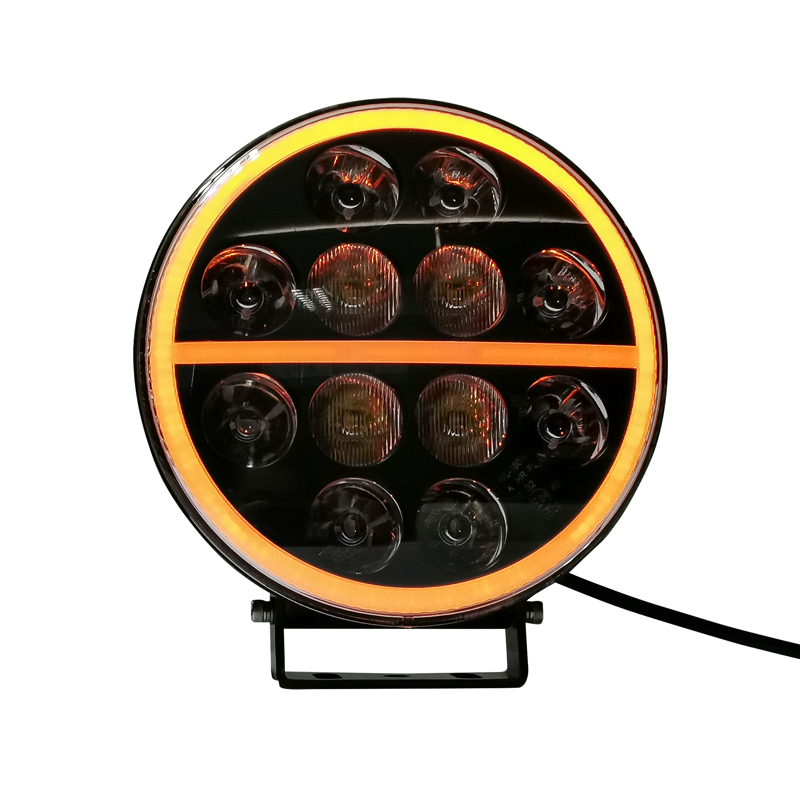

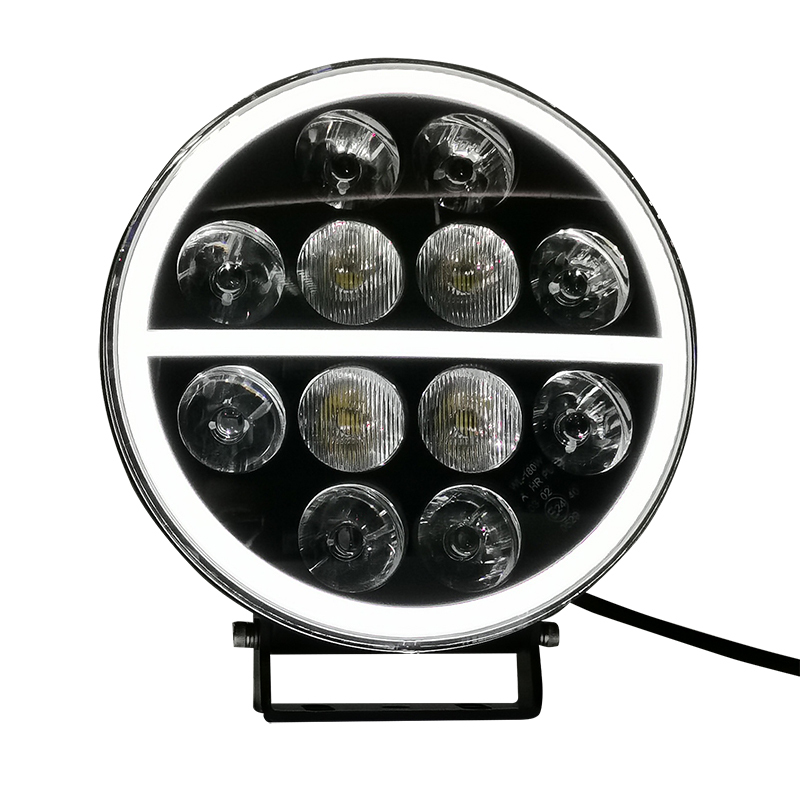

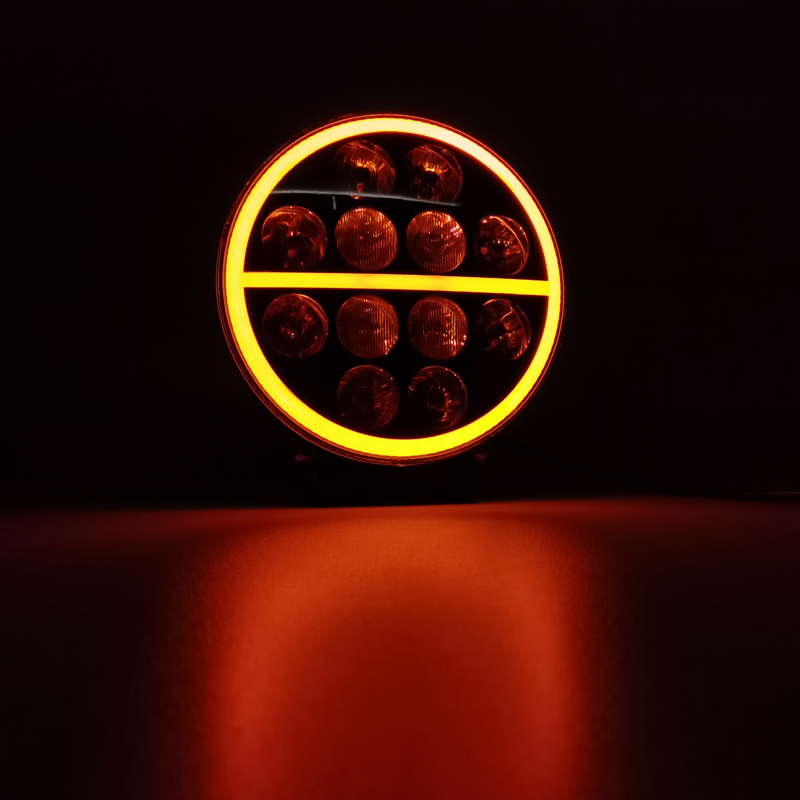

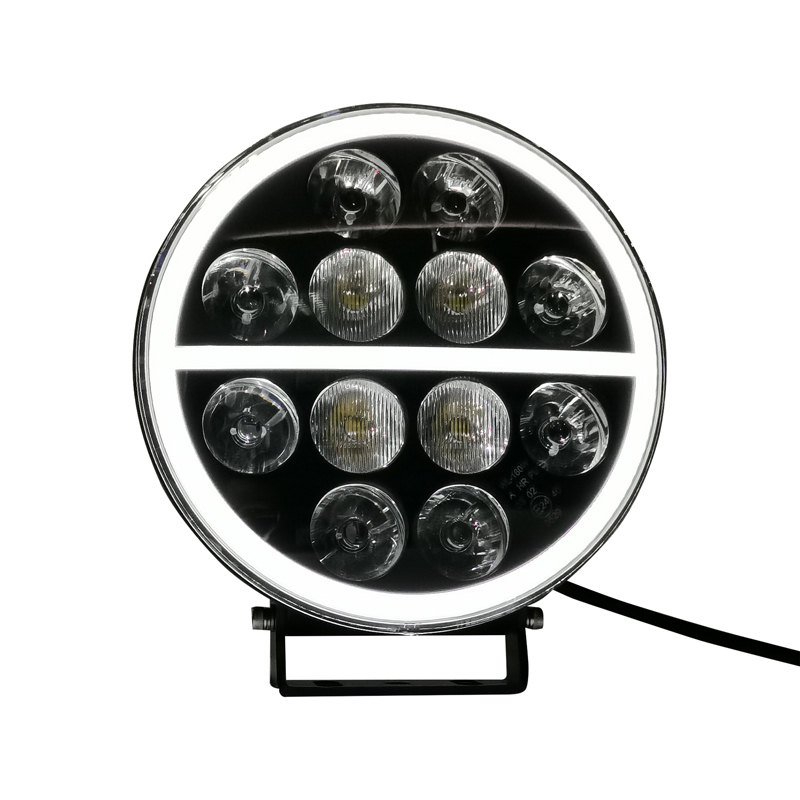

NS-WL-180W is one of super power & long LUX range LED Driving Light.
It's 8.5 inch housing allows WL-180W applied for many kinds of bumper.
Professional designed 7° & 60° optic lens with 4pcs CREE XHP50.2 20W & 8pcs OSRAM KW CSLPM1.TG chips, it will offer you a 740m 1lux long-range & 60m 1lux close-range lighting.
Built-in ATC system (automatic Temp. control) to optimized output power
E-mark approval driving beam, ECE R112, Ref.40
Bullet-proved unbreakable PC cover
Professional optic lens
Anti 5% salt spray corrosion dacromet coating, anti-UV
Electrically Protected again RFI and EM Interference
IP68 waterproof
Over and Under Voltage Protection
HOUSING MATERIAL | Die-cast Aluminium |
LENS | BAYER PC |
LED TYPE | 4 x CREE XHP50.2 20W + 8 x OSRAM KW CSLPM1.TG 20W + 51pcs dual-color SMT |
POWER | 180W MAX |
LUMENS | 19,600Lm (RAW) |
16,800Lm (Actual) | |
VOLTAGE | DC 9 - 32V |
INGRESS PROTECTION | IP68 |
OPERATING TEMP | -40°c to + 80°c |
EMC | CISPR 25 class 3 |
CERFICATION | R112 Ref. 40 / R7 / CE / Rohs |

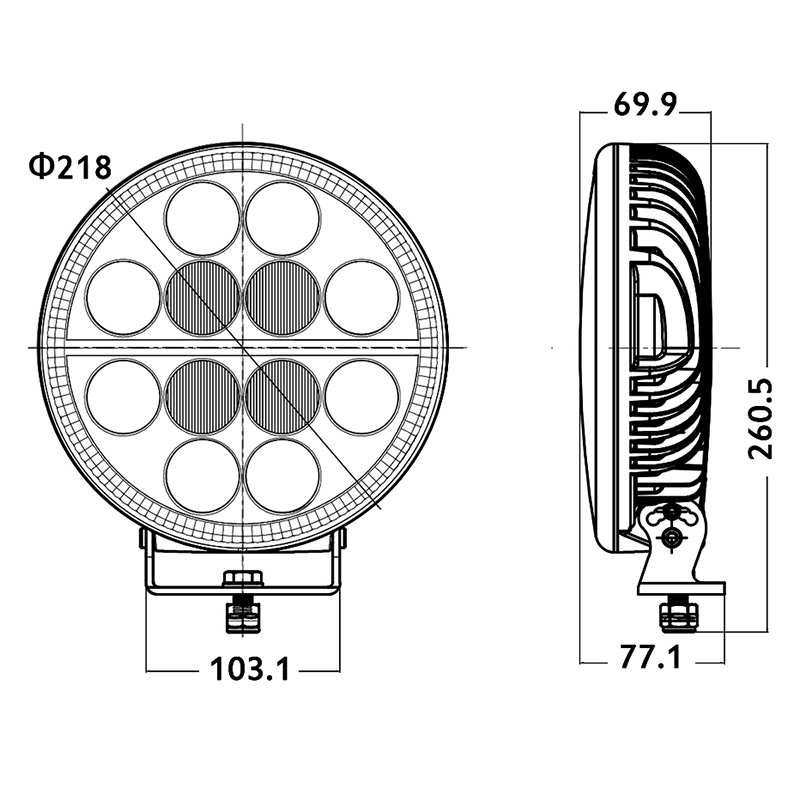

DIMENSION | 8.5" X 2.75 " (218mm X 69.9mm) |
COLOR TEMP. | 5700K |
WARRANTY | 2 Years |
