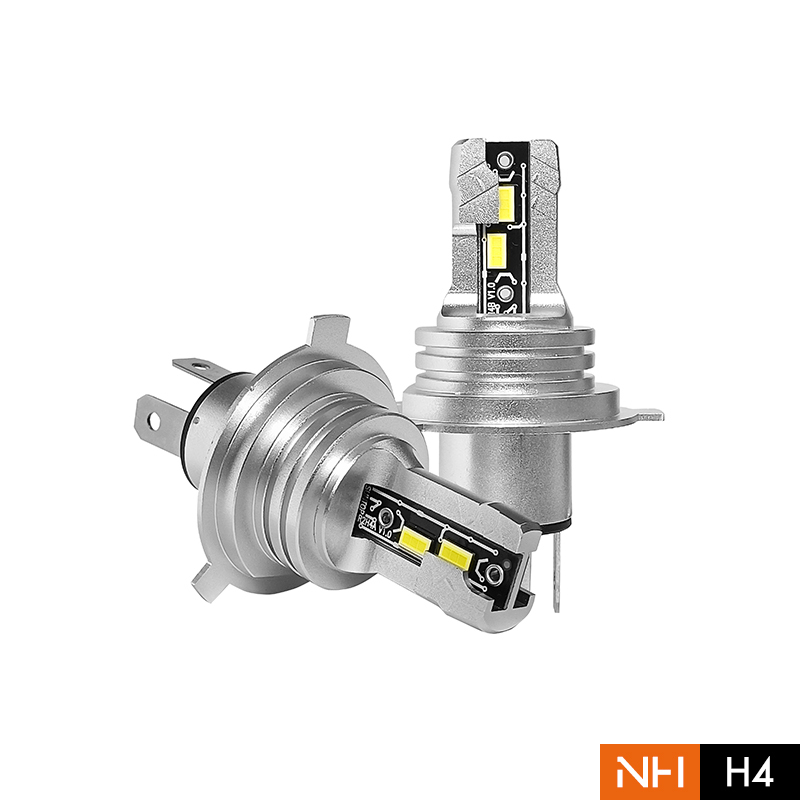

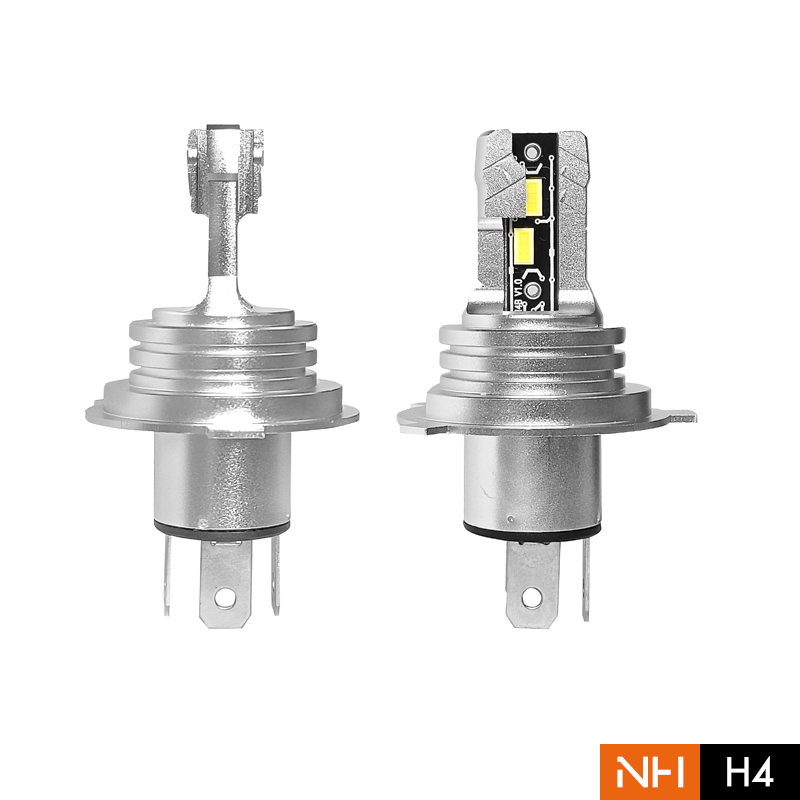

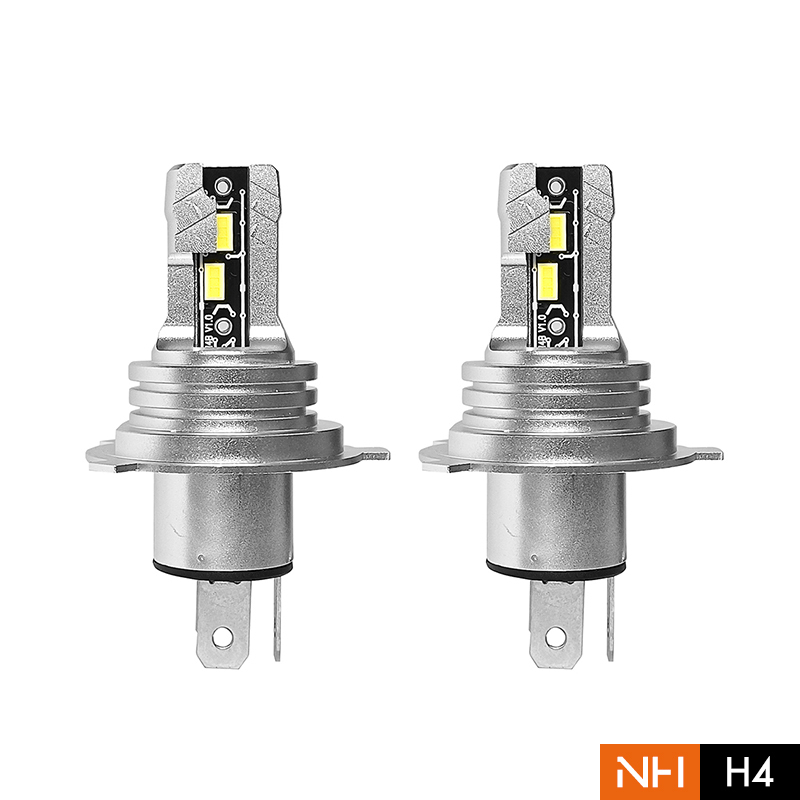

NH H4 All in one 1:1 size plug & play LED headlight bulb

Item No.: NH-H4
NH series headlight bulb is 1:1 size with halogen bulb
No adapter required
9-32V DC voltage
plug & play, meets ECE R37, ECE R10
  • Power: 15W
  • Bases: H4
  • Working voltage: 9-32V
  • Description APPLICATION & PERFORMANCE

    All in one 1:1 beam LED headlight bulb NH

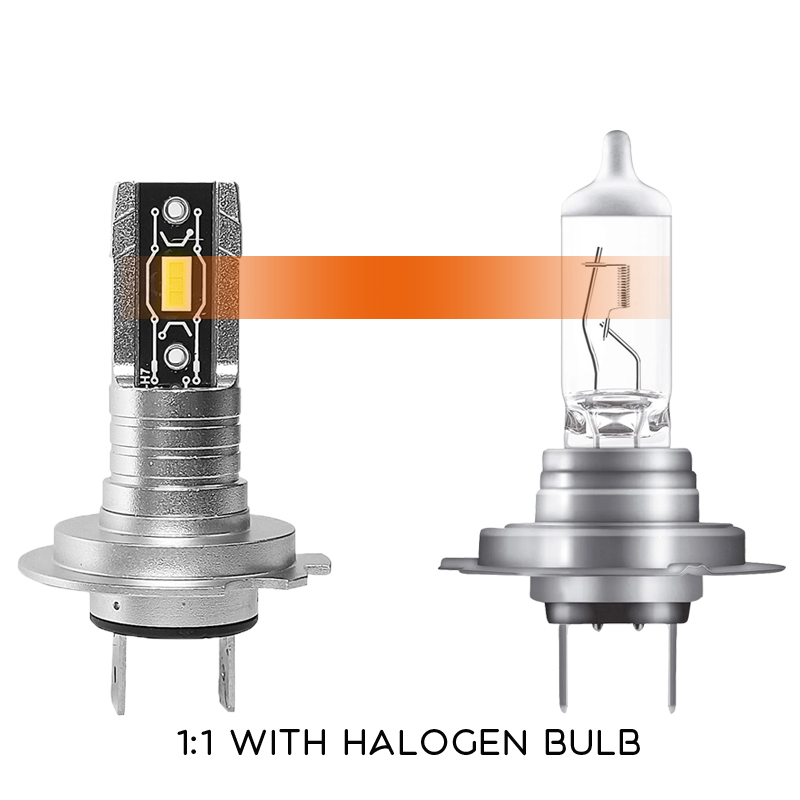

    NH series is NSSC newest 1:1 size with original halogen bulb designed LED headlight bulb.

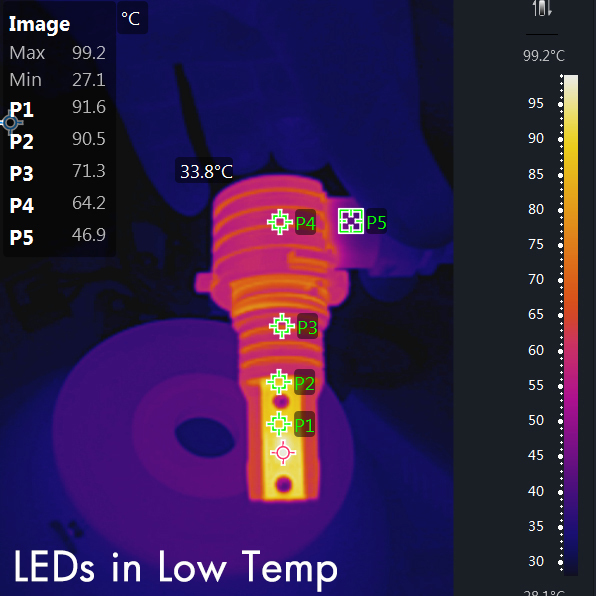

    It's fanless no cooling fan designed for longevity, with 6063 Aluminum housing and copper plate heatsink, it output effcient 15W 1500lm per bulb stably, increase 200% brightness for driving.

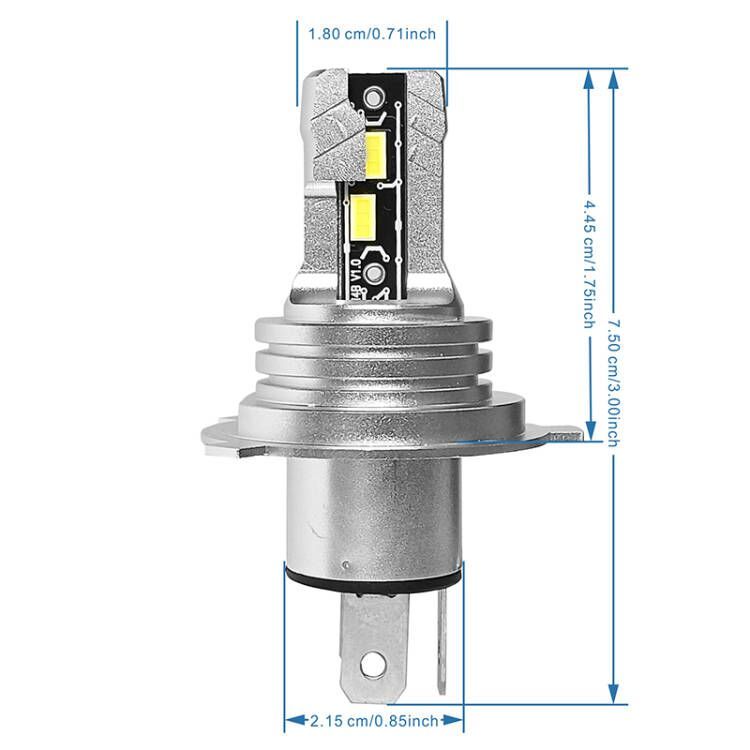

    It has no external driver, 1:1 size with halogen bulb, easy to install within 1 min, also no extra adapter required.

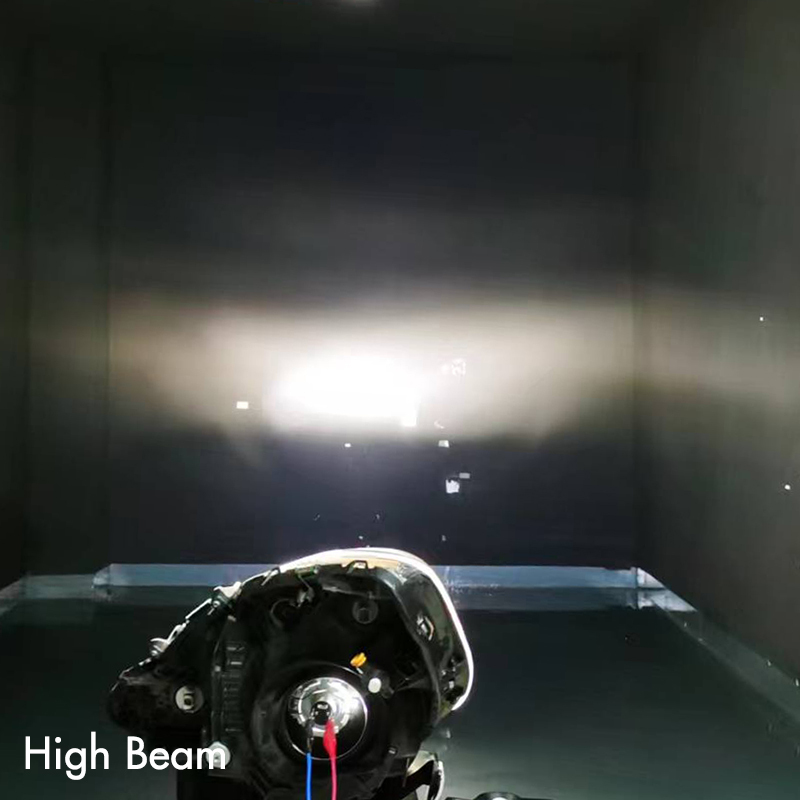

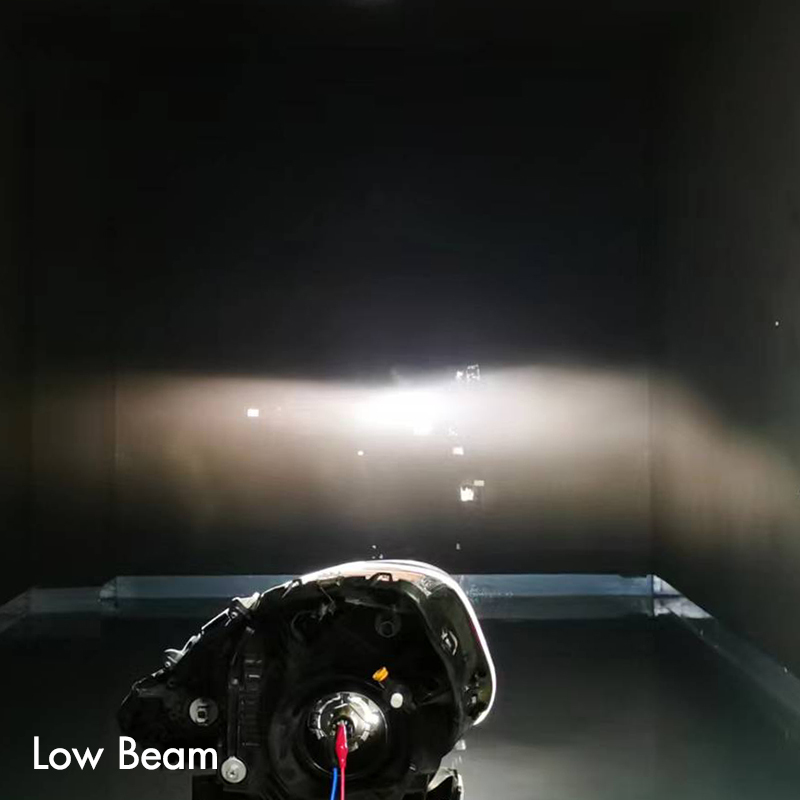

    The LED's position meets ECE R37 for no glaring light, EMC meets ECE R10 for no electronic interference.
    It has 9-32V wide working voltage for cars, trucks, motorcycle etc vehicles lighting.

    NH series is available H1、H3、 H7、H8、H9、H11、H16、HB3 9005、HB4 9006、HIR2 9012 bases for option.


    TECHNOLOGY

    • LEDs is correctly positioned as ECE R37 regulation

    • No extra adapter required for installation

    • 9-32V DC wide voltage for car / truck lighting

    • Electrically Protected again RFI and EM Interference

    • All In One design, no driver box

    • Over and Under Voltage Protection

    • Non-linear driver, stable output


    SPECIFICTION

    HOUSING MATERIAL Extrusion Aluminum
    POWER 25W/bulb
    LUMENS 2,250Lm/bulb
    VOLTAGE DC 9 - 32V
    OPERATING TEMP -40°c to + 80°c
    CERFICATION CE / Rohs
    COLOR TEMP. 6000K
    WARRANTY 18 months












    Models available: H1 / H4 / H7 / H11 / HB3 / HB4 / HIR2



    APPLICATION & PERFORMANCE
