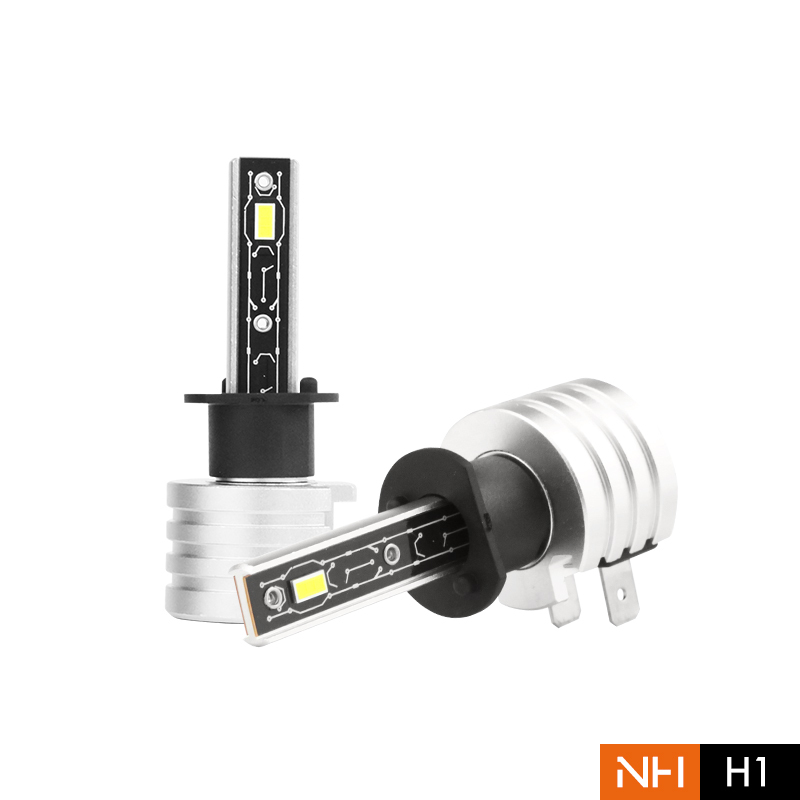

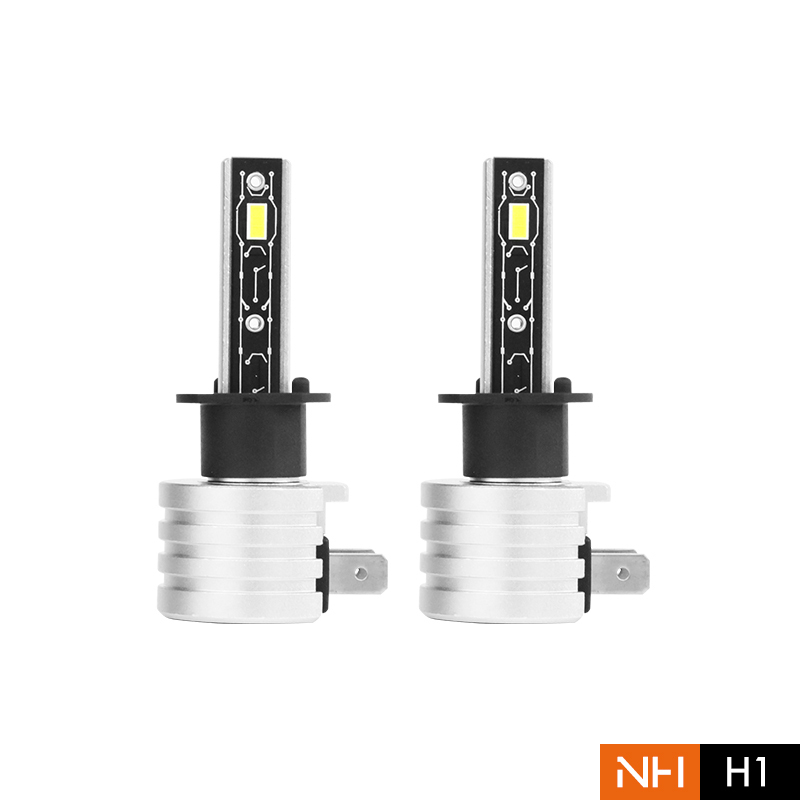

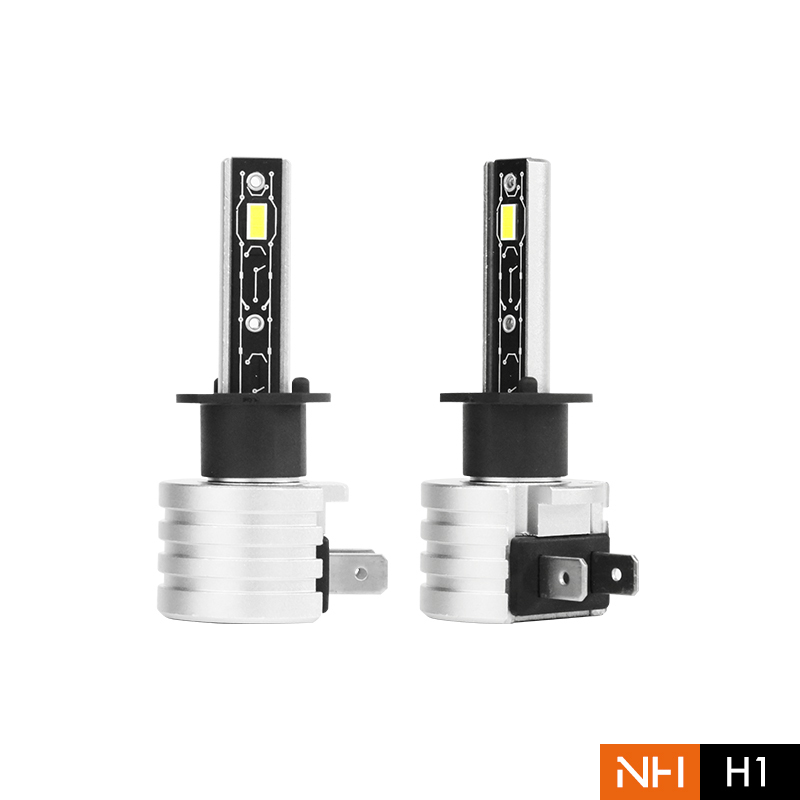

NH H1 All in one 1:1 size plug & play LED headlight bulb

NH H1 All in one 1:1 size plug & play LED headlight bulb

Name: NH H1 All in one 1:1 size plug & play LED headlight bulb
Brand: NSSC LIGHTING
SKU: NH-H1
Availability: InStock
Rating: 5 (1 reviews)

Item No.: NH-H1

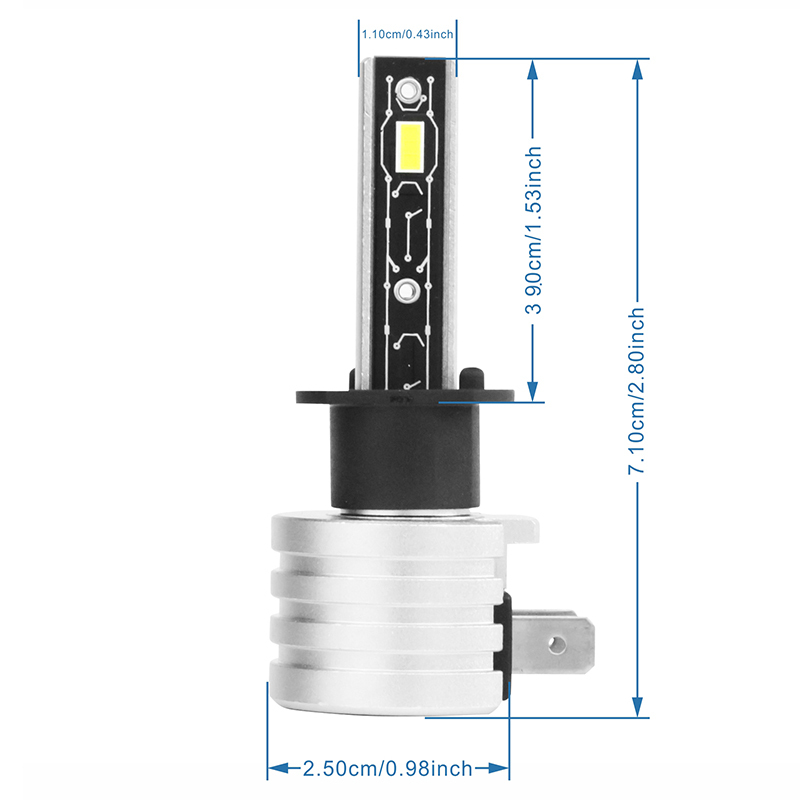

NH series headlight bulb is 1:1 size with halogen bulb
No adapter required
9-32V DC voltage
plug & play, meets ECE R37, ECE R10

Power: 15W

Bases: H1

Working voltage: 9-32V

INQUIRY

Description APPLICATION & PERFORMANCE

SEEKER All in one 1:1 beam LED headlight bulb NH

NH series is 1:1 beam pattern All In One plug & play LED headlight bulb.
The extrusion Aluminum housing allows it output a higher power than others' die-cast type.
Wide working voltage 9-32V allows it can work with both 12V car & 24V truck system.

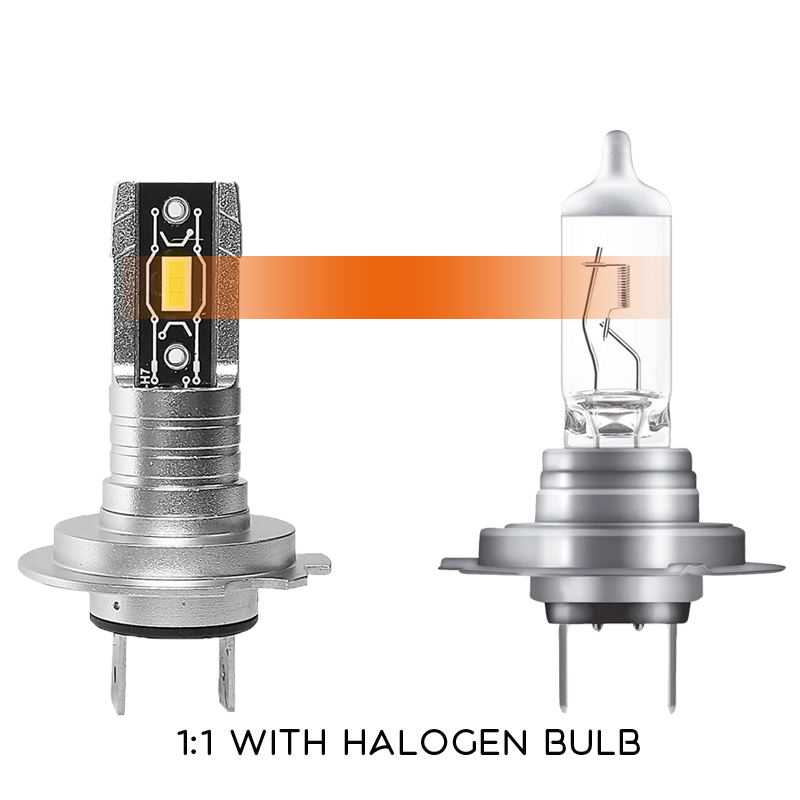

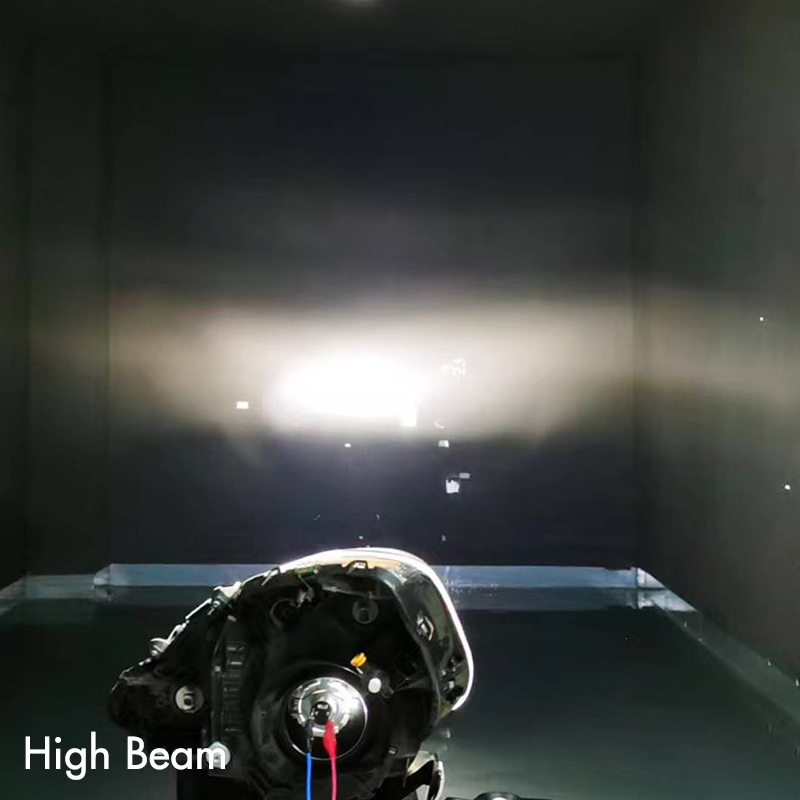

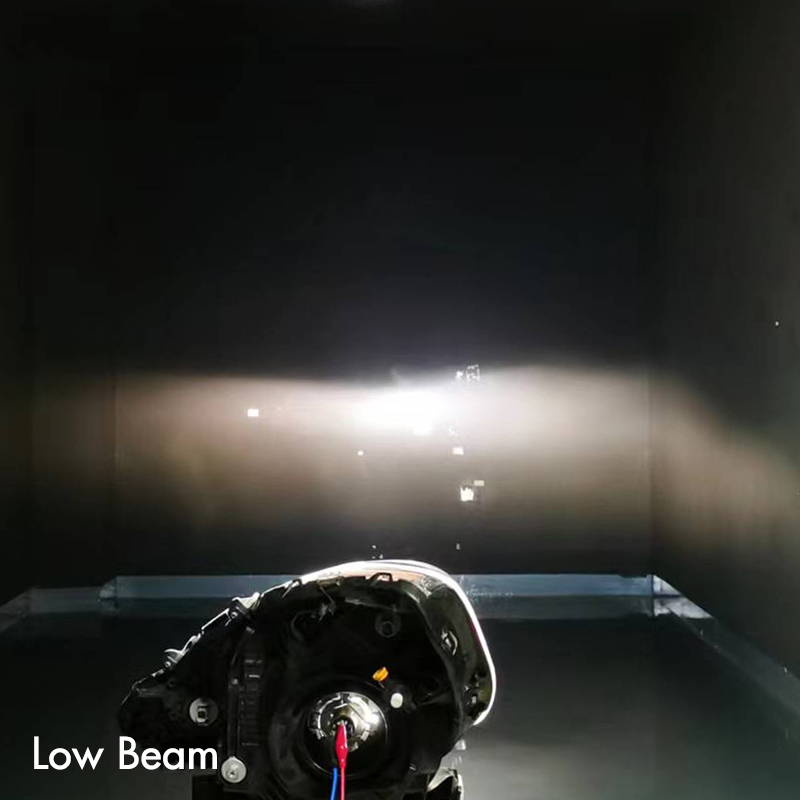

It's LED is positioned as ECE R37 regulation, 1:1 beam pattern same with halogen bulb.

TECHNOLOGY

LEDs is correctly positioned as ECE R37 regulation

No extra adapter required for installation
9-32V DC wide voltage for car / truck lighting

Electrically Protected again RFI and EM Interference
All In One design, no driver box
Over and Under Voltage Protection

Non-linear driver, stable output

SPECIFICTION

HOUSING MATERIAL	Extrusion Aluminum
POWER	25W/bulb
LUMENS	2,250Lm/bulb
VOLTAGE	DC 9 - 32V
OPERATING TEMP	-40°c to + 80°c
CERFICATION	CE / Rohs
COLOR TEMP.	6000K
WARRANTY	18 months
